Variable Frequency Ac Drives 6.6kv 11kv 1000kW Medium Voltage Vsd Vfd
1.Accurate fault location and recording function
2. Unit bus voltage, temperature display function
3. Operating voltage, current, frequency record can be querying
4. Dual loop control power supply
5. The secondary winding of transformer is used as backup control power to ensure the safety of the system during operation.
6. Multiple control methods
7. The choice of local control, remote control box control, DCS control
8. Support MODBUS, PROFIBUS and other communication protocols
9. The frequency setting can be given on the spot, the communication is given, etc.
10. Support frequency presupposition, acceleration and deceleration function
11. With high power density ahead of the peers
12. Small unit volume, modular design
13. The whole machine is compact and takes up a small space
14. Perfect protection mechanism
15. The unit contains 7 kinds of protection, and the whole machine is still running after the failure.
16. The whole machine includes the protection of the frequency converter and the protection of the motor.
17. High control performance
18. Built-in PID regulator;
19. It can be adapted to different fields by parameter setting, and the output current harmonics are less than 2% (rated).
| Item | Unit | Data |
| Input Voltage | frequency, voltage | Three phase,50Hz ,6kV(10kV) |
| fluctuation | voltage:-10% ~ +10%,frequency:±5%,-10% ~ -35% | |
| Rated output | Output voltage | Three phase 0--6kV(0--10kV) |
| Curve | Multiply SPWM sine waves | |
| Overload capacity | 130% 1min, 150% 3s | |
| Basic feature | Precision | Analog setting:0.3% of the highest frequency setting value |
| Digital setting:0.02% of the highest frequency setting value | ||
| Efficiency | >98%,in rating condition | |
| Power factor | >0.95 | |
| Control factor | The time of acceleration and deceleration | 0.1~6000.0S,acceleration and deceleration time can be set separately |
| The feature of voltage and frequency | Set by the V/F curve | |
| PID | The parameters of PID can be set by hand | |
| The other functions | V/F curve, Compensation for the low frequency, rated | |
| Running | Operation modes | the machine control, remote control, host computer control |
| Frequency setting modes | setting on touch screen, multistage speed setting, analog signal setting (4-20 mA ) | |
| Touch screen display | Over-current of the motor, over-voltage of the inverter, under-voltage of the inverter, over-current of the cell, over-voltage of the cell, over-heat of the cell, lack phase of cell, communication failure. | |
| Protection function | over-current of the motor, over-voltage of the inverter, under-voltage of the inverter, over-current of the cell, over-voltage of the cell, over-heat of the cell, lack phase of cell, communication failure. | |
| Environment
Ambient |
Ambient | Indoor with good ventilation and free from corrosive gas and conductive dust |
| Altitude | Below 1000m. Need to rise the rated power when the altitude is more than 1000m | |
| Temperature | -20~+65°C | |
| Humidity | 90%RH without dew condensation | |
| Vibration | <0.5G | |
| Cooling | Forced Air Cooling |
|
Model |
Power level |
Size and weight |
|||
|
Width(W) (mm) |
Depth(D) (mm) |
Height(H) (mm) |
Weight(kg) |
||
|
JD-BP37-250F |
250 kW/6kV |
2300 |
1500
|
1900 |
1320 |
|
JD-BP37-280F |
280 kW/6kV |
1380 |
|||
|
JD-BP37-315F |
315 kW/6kV |
2465 |
|||
|
JD-BP37-400F |
400 kW/6kV |
2595 |
|||
|
JD-BP37-500F |
500 kW/6kV |
3410 |
|||
|
JD-BP37-560F |
560 kW/6kV |
3460 |
|||
|
JD-BP37-630F |
630 kW/6kV |
2900 |
2120 |
3620 |
|
|
JD-BP37-710F |
710 kW/6kV |
3825 |
|||
|
JD-BP37-800F |
800 kW/6kV |
3945 |
|||
|
JD-BP37-1000F |
1000 kW/6kV |
4500 |
|||
|
JD-BP37-1100F |
1100 kW/6kV |
6000 |
|||
|
JD-BP37-1250F |
1250 kW/6kV |
3300 |
1700 |
2420 |
6900 |
|
JD-BP37-1400F |
1400 kW/6kV |
7600 |
|||
|
JD-BP37-1600F |
1600 kW/6kV |
3600 |
8000 |
||
|
JD-BP37-1800F |
1800 kW/6kV |
8400 |
|||
|
JD-BP37-2000F |
2000 kW/6kV |
8700 |
|||
|
JD-BP37-2250F |
2250 kW/6kV |
9700 |
|||
|
JD-BP37-2500F |
2500 kW/6kV |
10700 |
|||
|
JD-BP37-3250F |
3250 kW/6kV |
5800 |
2620 |
11700 |
|
|
JD-BP37-4000F |
4000 kW/6kV |
13200 |
|||
|
JD-BP37-5000F |
5000 kW/6kV |
9400 |
15700 |
||
|
JD-BP37-5600F |
5600 kW/6kV |
17800 |
|||
|
JD-BP37-6300F |
6300 kW/6kV |
20000 |
|||
|
JD-BP37-7100F |
7100 kW/6kV |
22300 |
|||
The structure of JD-BP37/38 series high voltage inverter includes phase shifting transformer, power cells and controller.

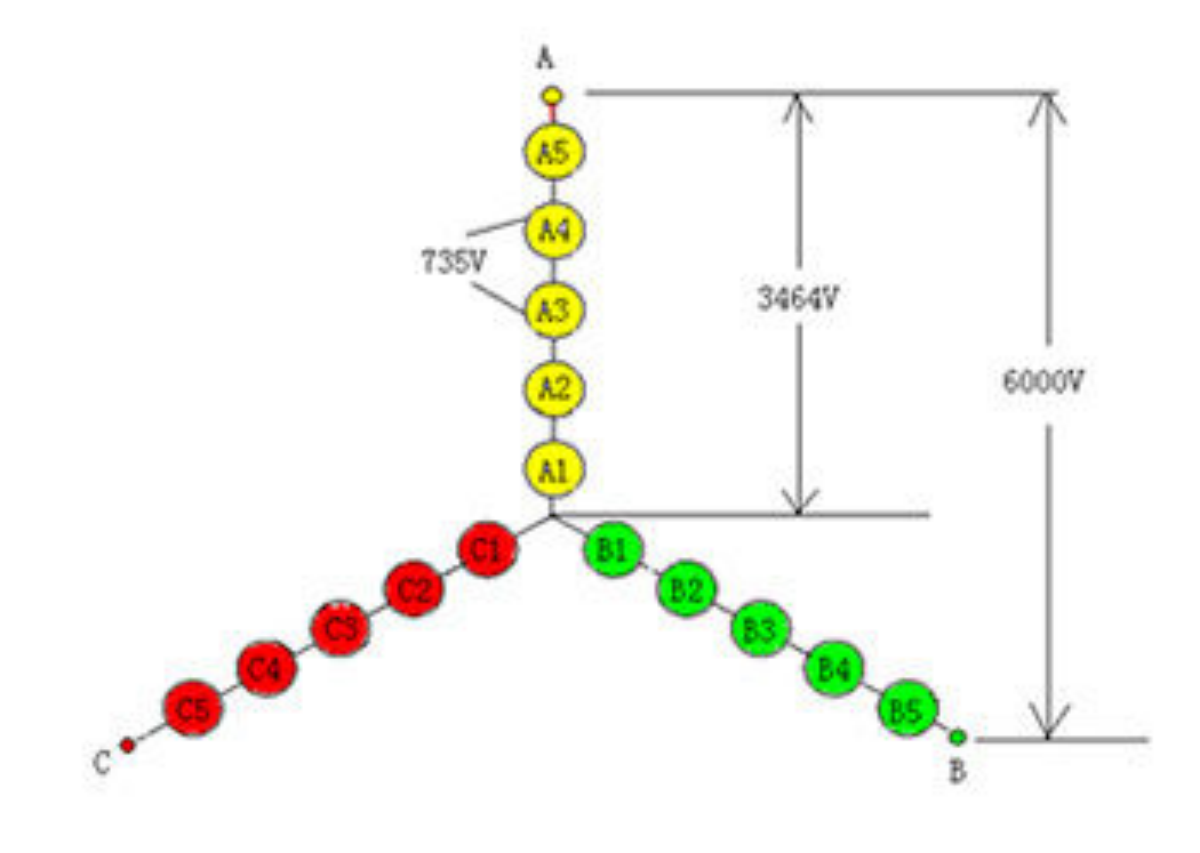

6kV series inverter contains 5 cells each phase, 15 cells in total.
10kV series inverter contains 8 cells each phase, 24 cells in total.
The structures of power cell are common. It is the AC -DC - AC single phase inverter circuit, rectifier diodes are for the three phase full-wave, IGBT 23inverter bridge controlled by sinusoidal PWM technology. Each power cell is same, it is easy to commission, maintain and do the spare, if a failure occurs, the up bridges are on to achieve the bypass and the output of the inverter is decelerating.
