Noker High Performance 80a 100a 120a 150a Single Phase Thyristor Scr Power Regulator Stabilizers

Short Description:

The NK10T series single phase thyristor power regulators adopt the latest power electronic control technology and thyristor control technology. It is an ideal electric heating control equipment.

With the high performance and reliable, NK10T series thyristor power regulator widely used in batch furnace, stress releaving, industrial oven, upsetting machine, multizone heating, plastic industry, investment casting, Pharmaceutical environment chamber.

Send email to us

Product Detail

Product Tags

Video

Features

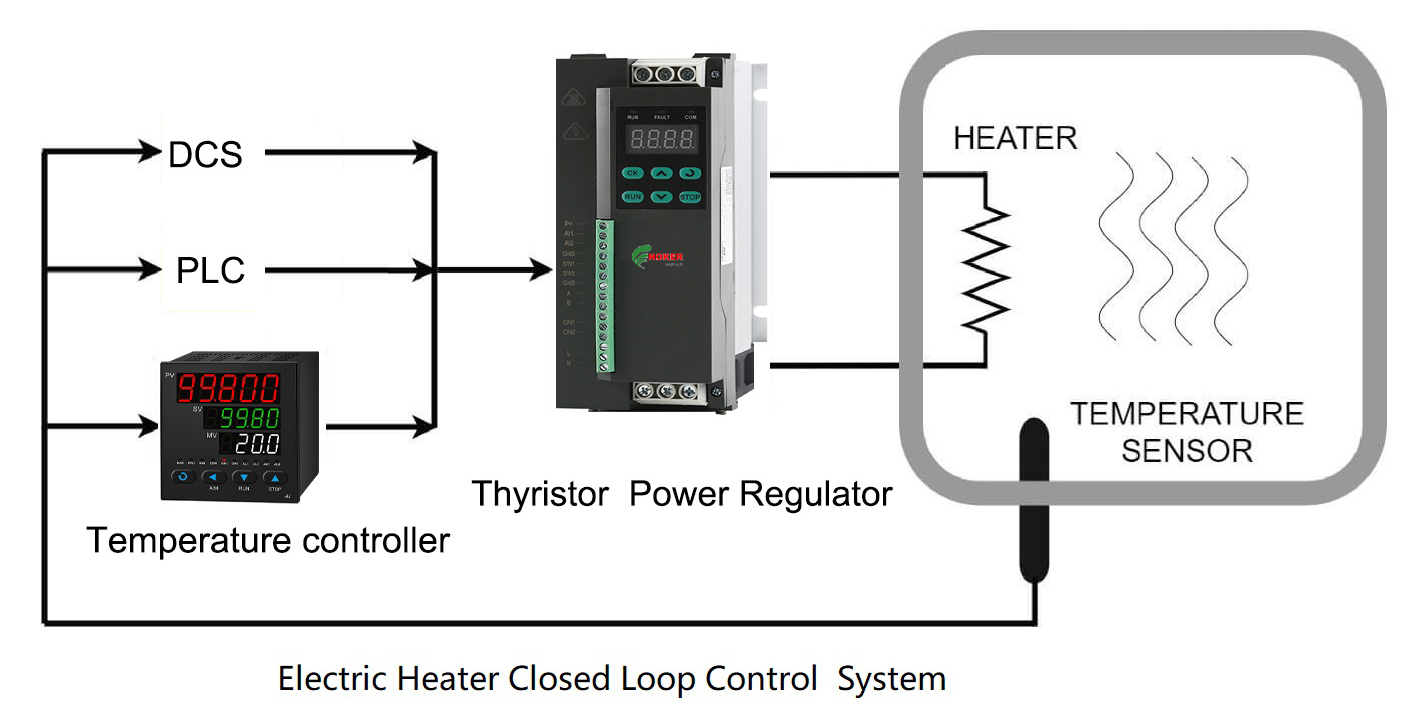

Scr power regulator, also known as scr power controller is used to control power delivery. They are designed to vary the ac voltage across the resistive&inductive loads. The thyristor power controllers provide a smooth way of power delivery to load. Unlike conactors, not have any electromechanical movemen. Scr power regulator includes the back to back connect silicon rectifier(scr), trigger pcb board, current transformers, temperature transformer. By the trigger pcb board to control the thyristor by phase angle&zero cross burst two models. The current transformers detect the three phase current, as the constant current control and to be the current protection. The temperature transformers detect the heatsink temperature to protect the Scr to be safe.

1. Built-in high performance, low power microcontroller;
2. Peripheral features;
2.1. Support 4-20mA and 0-5V/10v two given;
2.2. Two switch inputs;
2.3. Wide range of primary loop voltage(AC110--440V);
3. Efficient cooling solution, such small size, light weight;

4. Practical alarm function;
4.1. Phase failure;
4.2. Overheat;
4.3 Overcurrent;
4.4. Load break;
5. One relay output, 3A AC250V, 3A DC30V;
6. Max current 150A;
7. To facilitate centralized control RS485 communication;

Specification

Item	Specification
Power supply	Main power: AC110--440v, control power: AC100-240v
Power frequency	45-65Hz
Rated current	25a---150a
Cooling way	Forced fan cooling
Protection	Phase lose, over current, over heat, overload, load lose
Analogue input	Two analogue input, 0-10v/4-20ma/0-20ma
Digital input	Two digital input
Relay output	One relay output
Communication	Modbus communication
Trigger mode	Phase shift trigger, zero-crossing trigger
Accuracy	±1%
Stability	±0.2%
Environment Condition	Below 2000m. Rise the rate power when the altitude is more than 2000m.Ambient Temperature: -25+45°C Ambient Humidity: 95%(20°C±5°C) Vibration<0.5G

Model

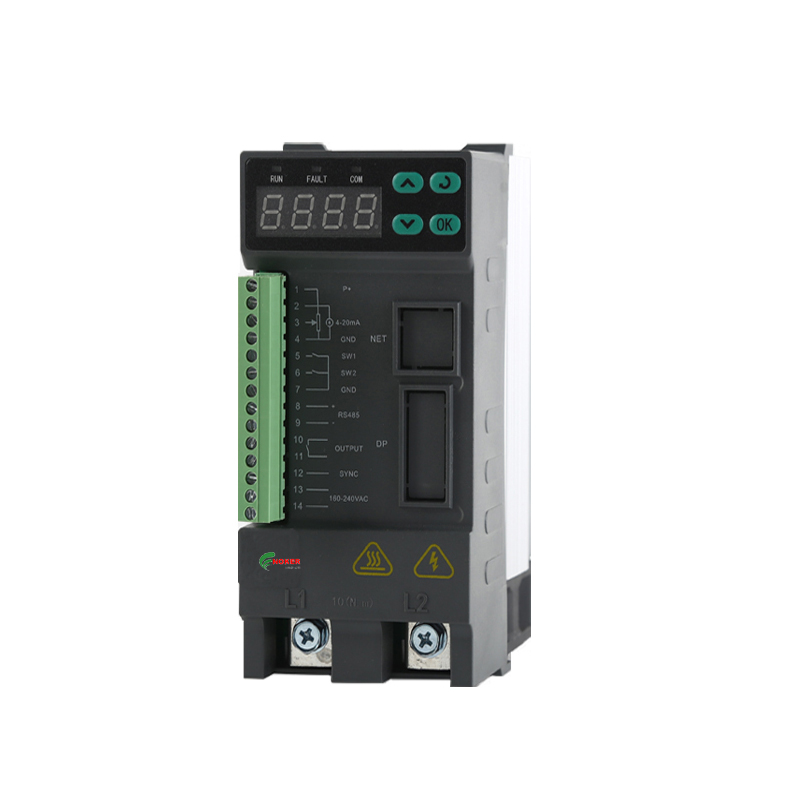

Terminals

Single phase thyristor scr power regulator with a wide power supply rang from 110-440v, support 0-10v/4-20mA analogue input, 2 digital input, modbus communication can be used to control the scr power regulator remotely. If you need with PID temperature module, it is optional. You need not add additional temperature module anymore.

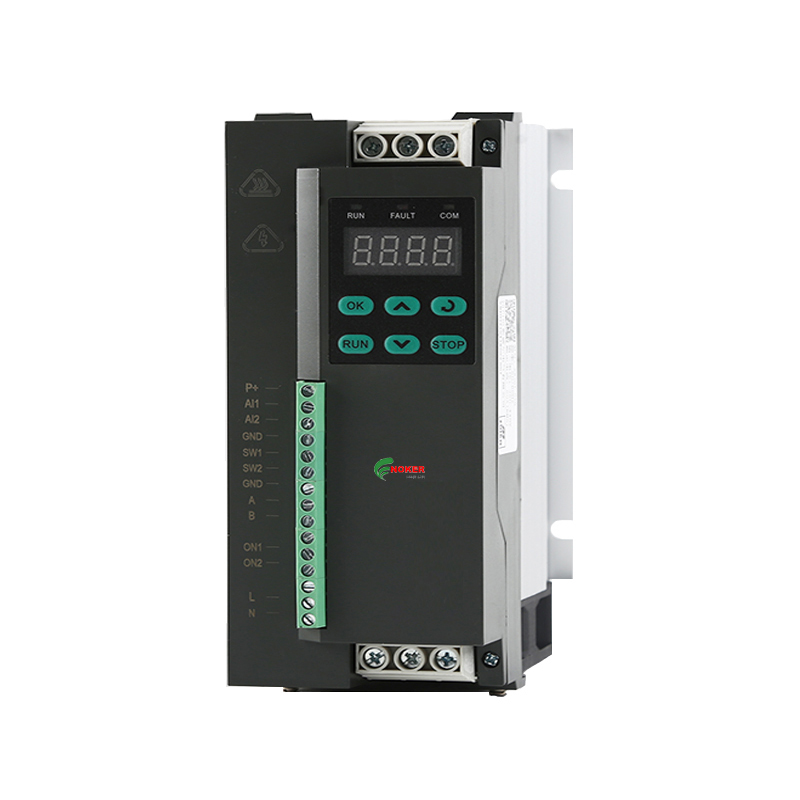

Keyboard operation

The single phase thyristor scr power regulator adopts 5-bit digital tube display, the eye-catching digital tube display brightness is high, good reliability. Can display all parameters and status of the power regulator, fault information. The humanized design is very convenient for the power regulator field data setting and status display.

Dimension

The shell of the single phase thyristor scr power regulator is made of high quality cold rolled steel plate, the surface is treated with anti-oxidation, and the powder is treated with electrostatic spraying, which has the characteristics of high temperature resistance and anti-oxidation. The power regulator has compact structure design, small volume and light weight.

Application

Noker Single Phase 50a 75a 100a 150a Phase Angle Trigger Heater Power Regulator

Single phases thyristor scr power regulator widely used with resistive and inductive loads. Some applications scr power regulator widely be used:

1. Aluminium melting furnaces;

2. Holding furnaces;

3. Boilers;

4. Microwave dryers;

5. Multi-zone drying and curing overs;

6. Plastic injection moulding requiring multi-zone heating for mainfold moulds;

7. Plastic pipes and sheets extrusion;

8. Metal sheets welding systems;
